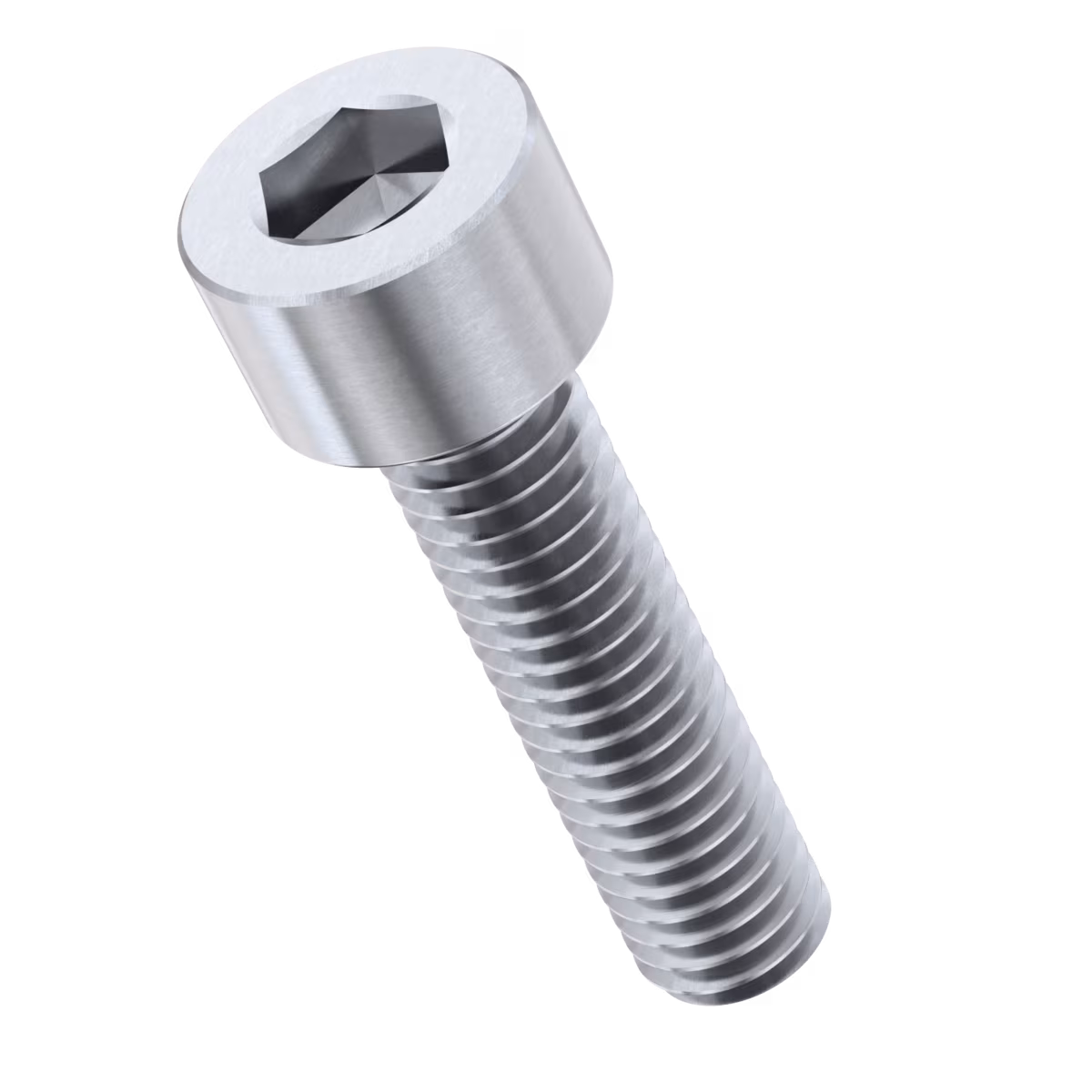

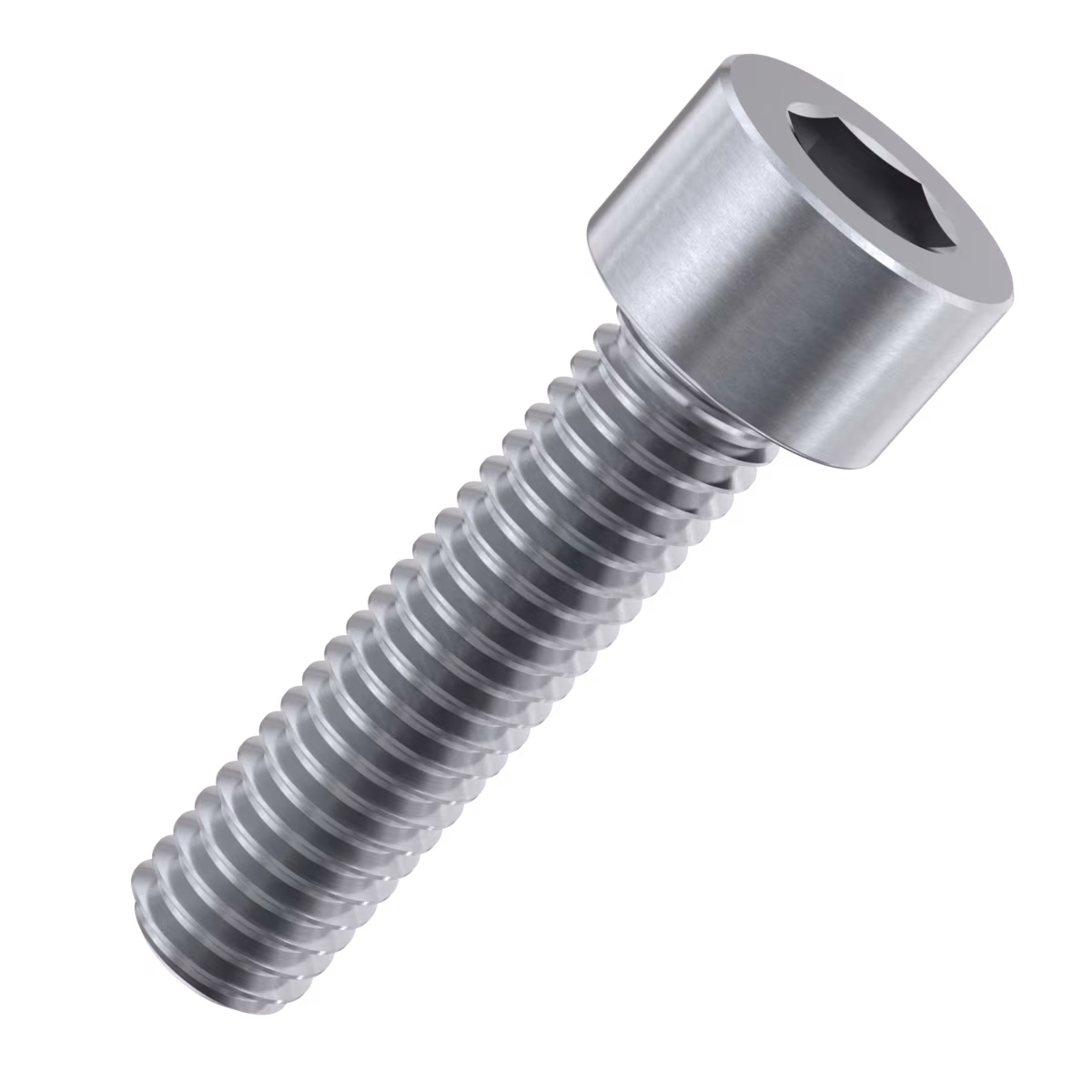

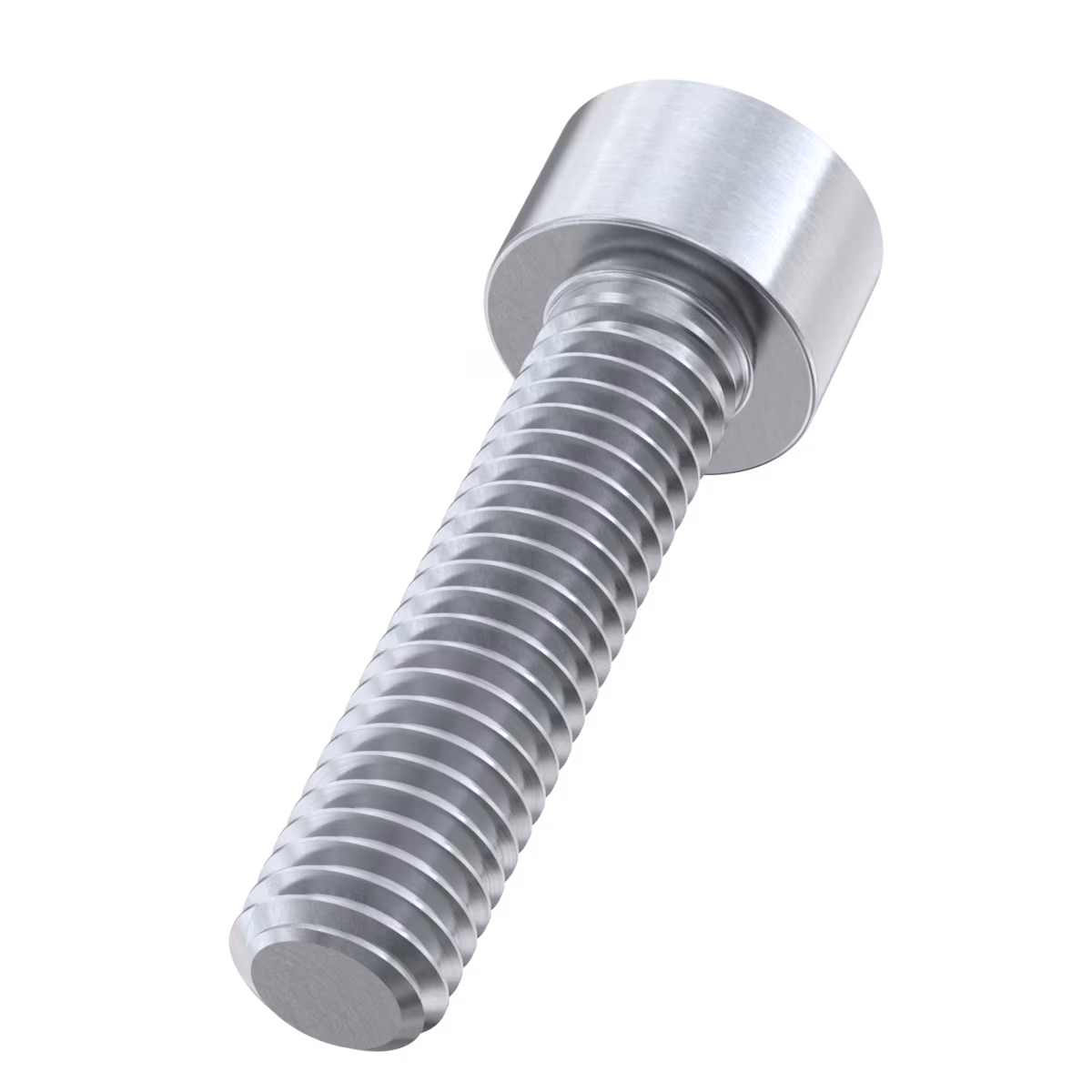

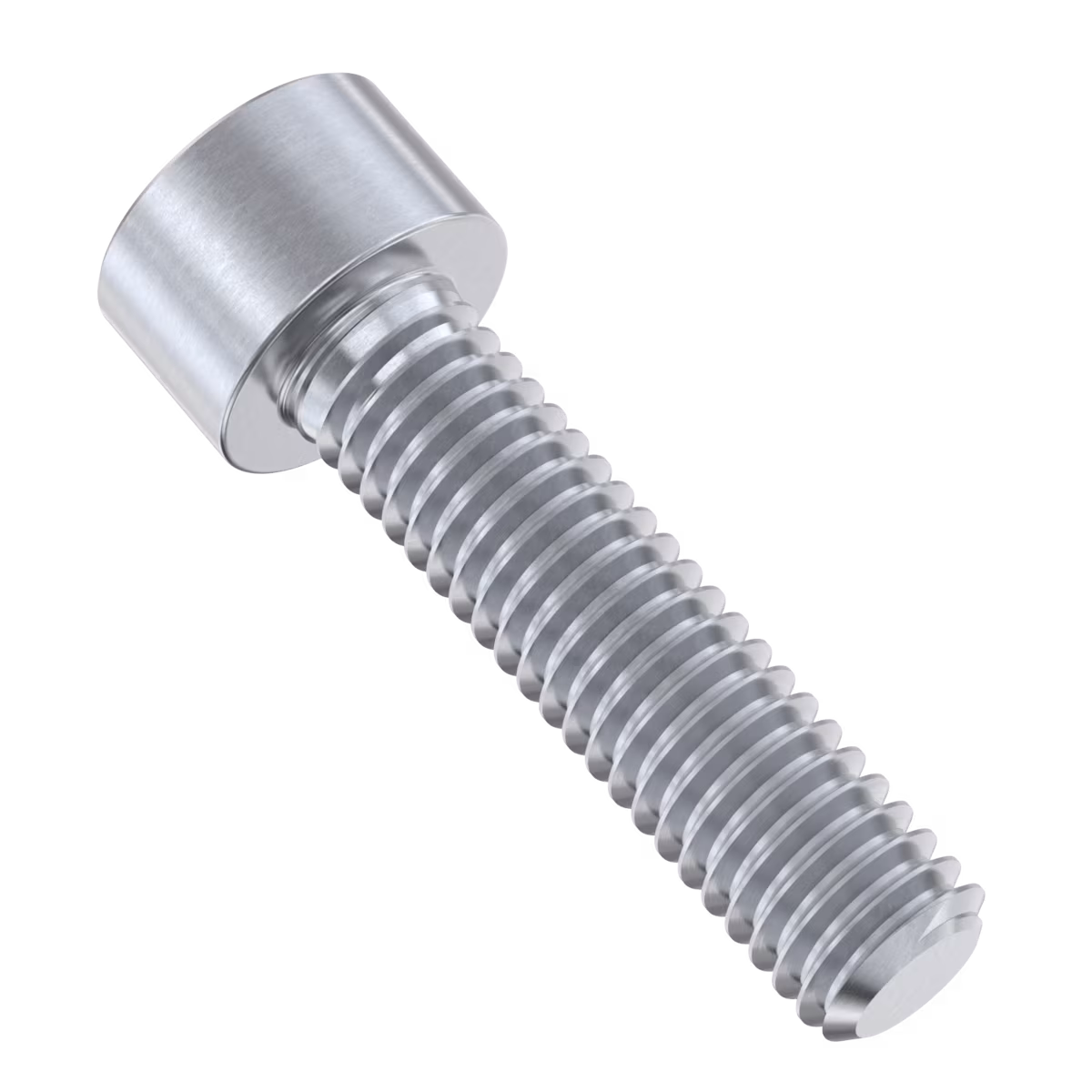

M8 x 25mm Full Thread Socket Cap Head Screws (DIN 912 / ISO 4762) - Stainless Steel (A2) Description

The M8 x 25mm Full Thread Socket Cap Head Screws (DIN 912 / ISO 4762) - Stainless Steel (A2) has the following features:

• 8mm Head Length (H)
• 4mm Hexagon Depth (P)
• DIN 912 / ISO 4762 Manufacturing Standard
• 25mm Length (L)
• Coarse Thread Specification

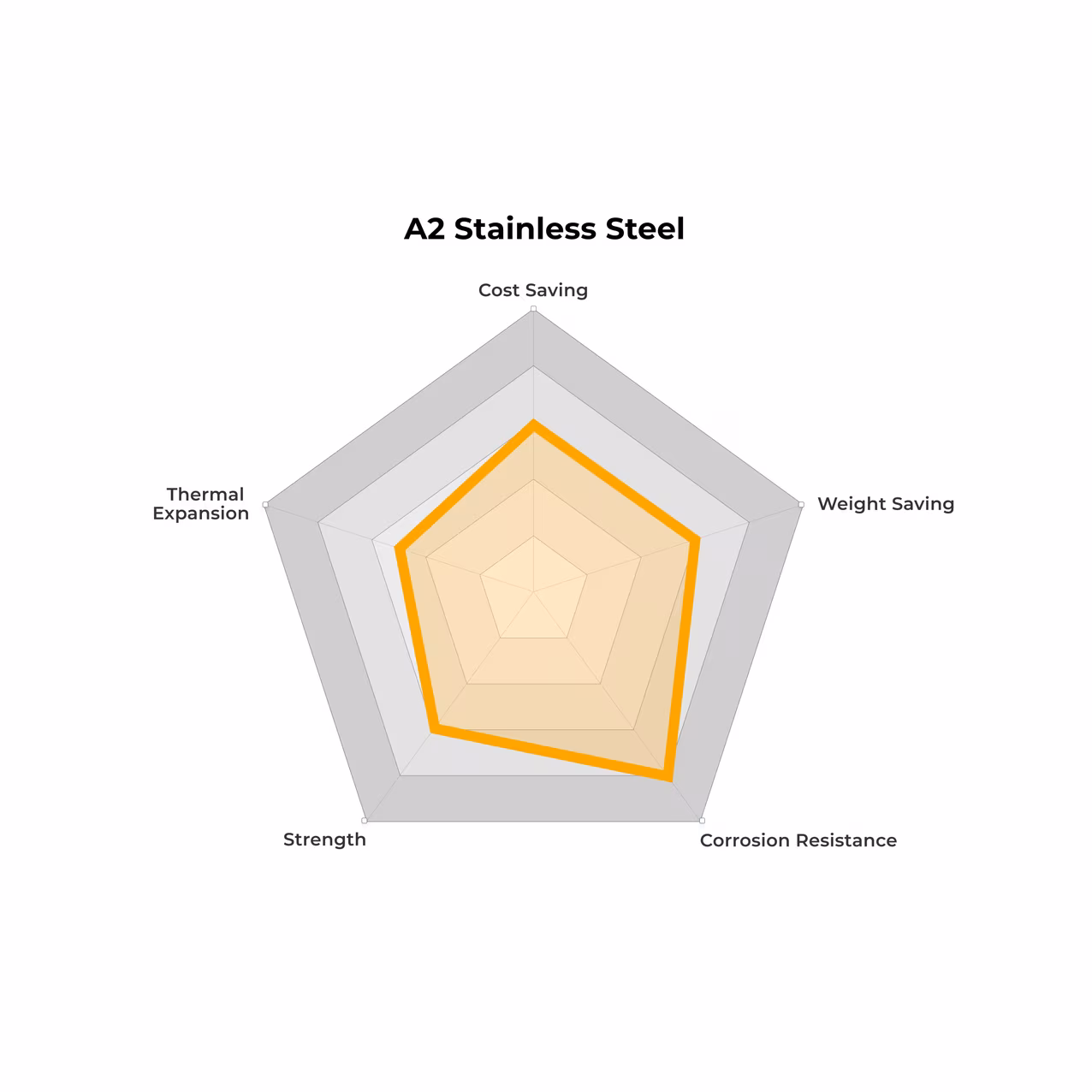

• Stainless Steel (A2) Material
• Stainless Steel (A2) Material Specification
• Natural Finish
• 1.25mm Thread Pitch
• Metric or Imperial?
• M8 (8mm) Thread Size
• 13mm Head Diameter (D)
• +0/-0.27mm Head Diameter (D) Tolerance
• +0/-0.36mm Head Length (H) Tolerance
• 6mm Socket Size (J)
• Yes Full Thread

---

Metric Cap Head Captive Screws

A number of Accu's Metric & Imperial Socket Cap Screws are also available to be modified to feature a precisely machined unthreaded section, affording a retaining capability. These specialised Captive Screws are used to provide a secure fixture and help to prevent damage or loss of screws in a housing assembly. Accu's range of Cap Head Captive Screws are designed to aid compliance with EU Safety Directives.

Materials

Socket Cap Screws within this range are available in a wide selection of materials, including metals ranging from A2, A4, A4-80, Duplex and Bumax Stainless Steel, 12.9 High Tensile Steel, Aluminium and Titanium. Plastic variants are also available as standard in Nylon, Polycarbonate, Reny and PEEK Thermoplastic.

Optimise your Metric Socket Cap Head Screws against vibrations and loosening with our pre-applied thread-locking patches, from essential AccuLock Threadlocker, robust Anu-Lok 180 through to our high performance Precote 80. Personalise your components with AccuBlack chemical blackening to reduce reflections and add a premium finish aesthetic finish.
